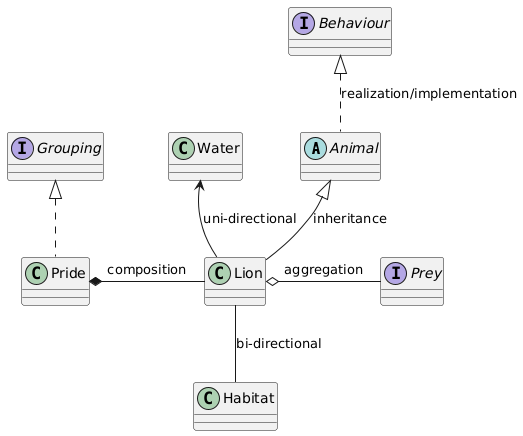

@startuml
abstract class Animal
interface Behaviour
interface Prey
Animal <|-- Lion : inheritance
Behaviour <|.. Animal : realization/implementation
Lion -left-* Pride : composition
interface Grouping
Grouping <|.. Pride
Prey -left-O Lion : aggregation
Water <-down- Lion : uni-directional
Habitat -up- Lion : bi-directional
@enduml
abstract class Animal
interface Behaviour
interface Prey
Animal <|-- Lion : inheritance
Behaviour <|.. Animal : realization/implementation
Lion -left-* Pride : composition
interface Grouping
Grouping <|.. Pride
Prey -left-O Lion : aggregation
Water <-down- Lion : uni-directional
Habitat -up- Lion : bi-directional
@enduml
- implementation/realization
 - a dotted line with a closed, unfilled arrow means realization (or implementation). The arrow points to the interface.
 - inheritance
 - Inheritance is indicated by a solid line with a closed, unfilled arrowhead pointing at the super class
 - aggregation
 - a solid line with an unfilled diamond at the class which uses the other class
 - composition
 - a solid line with an filled diamond at the class which contains the other class
 - bi-directional association
 - A bi-directional association is indicated by a solid line between the two classes. In the example, the Lion lives in his Habitat, but the Habitat benefits in some way from the Lion as well.
 - uni-directional association
 - A uni-directional association is indicated by a solid line between the two classes. The class that knows nothing of the other class, has an open arrowhead pointing to it. A Lion uses Water, but not the other way around.

References
- [1] Wikipedia - Class diagram
 - http://en.wikipedia.org/wiki/Class_diagram
 - [2] IBM Developer Works - UML basics The class diagram
 - https://www.ibm.com/developerworks/rational/library/content/RationalEdge/sep04/bell/
 - What's the difference between Aggregation and Composition?
 - http://randomthoughtsonjavaprogramming.blogspot.nl/2013/11/whats-difference-between-aggregation.html
